Actuators Accessories

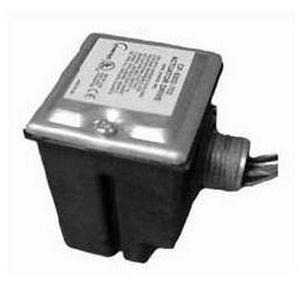

CP-9302 Actuator Drive
Description The CP-9302-702 electronic actuator drive processes a variable input signal from a controller to provide proportional control of
an electric actuator. The CP-930-702 is preset for current input (4-20 mA) and has additional wiring for connection to an override
switch for applications requiring an external override of the input signal. The CP-9302-702 is equipped with built in jumpers
and adjustable potentiometers, so that the type of input signal, deadband, input span, and start point may be readjusted in the
field when necessary.
Specifications
Electrical Ratings: Power supplied by the actuator
Input: 4-20 mA
Electrical Connection: 1/2” conduit knockout
Deadband Adjustability (Hysteresis):
Factory set at 5%, adjustable to 3%
Grounded Input:
Grounding either or both input wires will not cause
damage
Ambient Temperature:
-40°F to +160°F (-40?C to +71?C)
Enviroment:
NEMA TYPE 4 (weathertight)
Open circut Input:
Drives actuator to low
Series Operation:
No offset in control point when operated in tandem
Approvals:
UL Listed
