Actuators

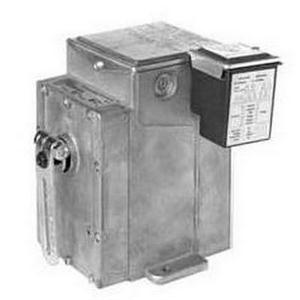

EMP-5 - 4-20 mA Input Proportionating Actuator

Description DUNGS actuators are designed to operate dampers, butterfly valves and similar devices Crank arm included; capable of 180 degree rotation with 180 degree slide wire.

Specifications
  • ELECTRICAL RATINGS : 120 VAC, 60 Hz
  • ENCLOSURE RATING : NEMA TYPE 1 (NEMA TYPE 4 with AM-363) part# 43164
  • AUXILIARY SWITCH : SPDT; 6A @ 120 Vac
  • AMBIENT TEMPERATURE RATING : -40 °F to +136 °F(-40 °C to +58 °C)
  • OPERATING MODE : POTENTIOMETER SLAVED PROPORTIONING, 100-1000 Ohm, SLIDEWIRE FEEDBACK
  • SIZE : 6 5/8" x 5 3/8" x 7" (L x W x H); ½" SHAFT


    • EMP-5
    Bulletin
    Installation Guide

    If you don't see the technical document that you need listed, contact techdocs@peconet.com
    and we will try to locate it in our archives.
