Gas Pressure Switches

BUY DUNGS SWITCHES NOW, CLICK HERE

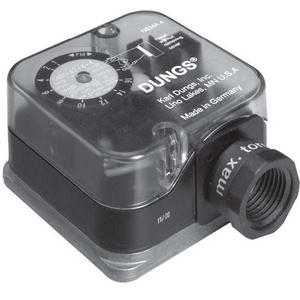

GAO, GMH, GML A2 - Modular Mount

Description The DUNGS GAO (Automatic Reset), GMH (High Manual Reset) and GML (Low Manual Reset) A2 pressure switches are compact pressure switches for DUNGS modular valve train components. A2 pressure switches are suitable for making and/or breaking a circuit when the medium pressure changes relative to the set point. The set point can be set in the field by an adjustable dial with an integrated scale.

Application The DUNGS GAO, GMH and GML A2 pressure switches are recommended for industrial and commercial heating application with DUNGS DMV dual modular valves and DUNGS FRI modular pressure regulators. The GAO, GMH and GML A2 pressure switches are suitable for natural gas, propane, butane, air and other inert gases.

Specifications
  • SPDT Sw 10A @ 120 VAC 8A FLA, NEMA TYPE 4
  • MAX OPERATING PRESSURE: 7 PSI
  • TEMPERATURE RATING: -40 °F TO +140 °F.


    • GAO, GMH, GML A2 - Modular Mount
    Bulletin
    Installation Guide

    BUY DUNGS SWITCHES NOW, CLICK HERE

    If you don't see the technical document that you need listed, contact techdocs@peconet.com
    and we will try to locate it in our archives.
