Gas Pressure Regulators

FRS - Stand Alone Pressure Regulators

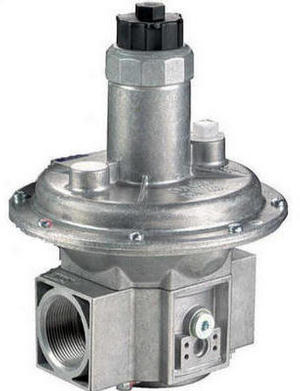

Description The DUNGS FRS 7../6 pressure regulator is a spring-loaded pressure regulator with an adjustable set point spring. Internal sensor for regulating output pressure.
  • Input pressures up to 7 PSI (CSA to 5 PSI)
  • High Flow Rate
  • Sturdy, precise and sensitive regulation of regulator output pressure
  • Lock-up Type Regulator
  • Vent Limiter; approved as a vent-less regulator by some authorities having jurisdiction. (Review applicable codes for vent line requirements)

    Application The DUNGS FRS 7../6 pressure regulator is recommended for industrial and commercial heating applications and is suitable for natural gas, propane, butane, and other inert gases.

    Specifications
  • ½” - 3" NPT
  • OUTLET PRESSURE RANGES 1” TO 80” W.C.
  • STANDARD SPRING 4” TO 12” W.C. (BLUE)
  • MAX OPERATING PRESSURE: 10 PSI (500 mbar) CSA
  • TEMPERATURE RATING: +5 °F TO + 160 °F (-15 °C TO + 70 °C)


    • FRS
    Bulletin
    Installation Guide
    Flow Tables

    If you don't see the technical document that you need listed, contact techdocs@peconet.com
    and we will try to locate it in our archives.
