Modulating Controls Valves and Motors

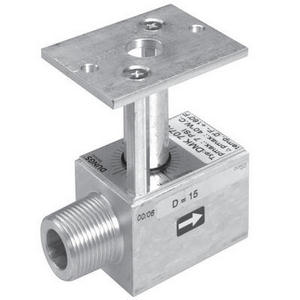

DMK - Butterfly Control Valve

Description The DUNGS DMK butterfly control valve actuates from 0° to 90° in either direction; it is not a tight shutoff valve. Inlet-side makes thread and outlet-side female thread enable a space-saving assembly with direct mounting on most DUNGS shutoff valves.

Application The DUNGS DMK is recommended for industrial and commercial heating applications for modulating gas or air supply to burners. The DMK butterfly control valve is suitable for natural gas, propane, butane, air and other inert gasses.

Specifications
  • MAX OPERATING PRESSURE: 7 PSI (500 mbar)
  • TEMPERATURE RATING: 0 °F to + 160 °F (-15 °C + 70 °C)


    • DMK
    Bulletin
    Installation Guide

    If you don't see the technical document that you need listed, contact techdocs@peconet.com
    and we will try to locate it in our archives.
