Dual Modular Valves with NEMA 4x Enclosure & Proof of Closure

BUY DUNGS VALVES NOW, CLICK HERE

DMV-D/624L
DMV-DLE/624L

Description The DUNGS Dual Modular Valve (DMV-D(LE)/624L) with Proof of closure combines all the features of the DUNGS Dual Modular Valve DMV/604 plus overtravel and a proof of closure switch which is factory mounted and set.

Application The DUNGS DMV/624L is recommended for industrial and commercial heating applications that require two safety shutoff valves in series where the application requires overtravel and proof of closure switch(es) and NEMA Type 4x enclosure. The (DMV-D(LE)/624L is suitable for natural gas, propane, butane, air and other inert gases.

Specifications
  • REQUIRES 1", 1 1/4", 1 1/2", 2" NPT OR RP FLANGES
  • V1 - FAST OPENING AND FAST CLOSING
  • V2 - FAST OPENING AND FAST CLOSING
  • MAX OP PRESSURE: 7 PSI.
  • TEMPERATURE RATING: -20°F TO +140°F

    • Includes:
  • 1 Conduit Adapter
  • 1 DIN-Connector

    • Required Accessories:
  • Two Flanges
  • PN: 217-665 Visual Indicator (VI)
  • Two PN: 219-008 G 1/8" Pressure Test Tap Required for Periodic Mandatory Testing of Valve Integrity.

    DMV-D 624L
    DMV-DLE 624L
    Bulletin
    Installation Guide

    BUY DUNGS VALVES NOW, CLICK HERE

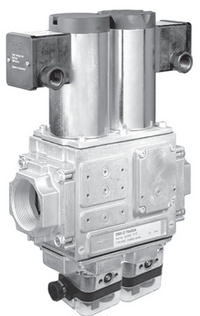

    DMV-D 704/624
    DMV-DLE 704/624

    DMV-D 704/634
    DMV-DLE 704/634


    Description The DUNGS Dual Modular Valve (DMV-D(LE)/624;634) with Proof of closure combines all the features of the DUNGS Dual Modular Valve DMV/604 plus overtravel and a proof of closure switch which is factory mounted and set.

    Application The DUNGS DMV/624;634 is recommended for industrial and commercial heating applications that require two safety shutoff valves in series where the application requires overtravel and proof of closure switch(es) and NEMA Type 4x enclosure. The (DMV-D(LE)/624;634 is suitable for natural gas, propane, butane, air and other inert gases.

    Specifications
  • REQUIRES 2" NPT OR RP FLANGES
  • V1 - FAST OPENING AND FAST CLOSING
  • V2 - FAST OPENING AND FAST CLOSING
  • MAX OP PRESSURE: 7 PSI.
  • TEMPERATURE RATING: -20°F TO +140°F


    • DMV-D 704/624
    DMV-D 704/634
    DMV-DLE 704/624
    DMV-DLE 704/634
    Bulletin
    Installation Guide

    BUY DUNGS VALVES NOW, CLICK HERE

    If you don't see the technical document that you need listed, contact techdocs@peconet.com
    and we will try to locate it in our archives.
