Dual Modular Valves
Nema 4x with Vent Line Adapter
DMV-D/604L
DMV-DLE/604L
Description

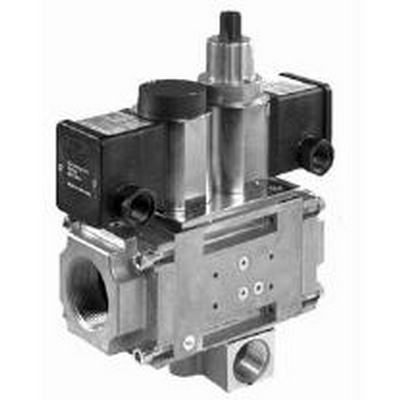

The DUNGS Dual Modular Valve (DMV-D(LE)/624) with a Vent Line Adapter (VLA) that is factory installed.
For main gas lines:
Up to 1 1/2"; Vent line must be 3/4"
2"; Vent Line must be 1"
Application
The DUNGS DMV-D(LE)/604 is recommended for industrial and commercial heating applications that require two
safety shutoff valves in series with a vent line connection between the safety shutoff valves and NEMA Type
4x enclosure. The (DMV-D(LE)/604) is suitable for natural gas, propane, butane, air and other inert gases.
Specifications
WITH VENT LINE ADAPTER
REQUIRES 1", 1 1/4", 1 1/2", 2" NPT OR RP FLANGES
V1 - FAST OPENING AND FAST CLOSING
V2 - FAST OPENING AND FAST CLOSING
MAX OP PRESSURE: 7 PSI.
TEMPERATURE RATING: -20°F TO +140°F
Includes:
1 Conduit Adapter
1 DIN-Connector
Required Accessories:
Two Flanges
One PN: 224 253 Closed Position Indicator (CPI) 400
& One PN: 217-665 Visual Indicator (VI)
OR
Two PN: 217-665 Visual Indicator (VI)
Two PN: 219-008 G 1/8" Pressure Test Tap
Required for Periodic Mandatory Testing of Valve Integrity.
