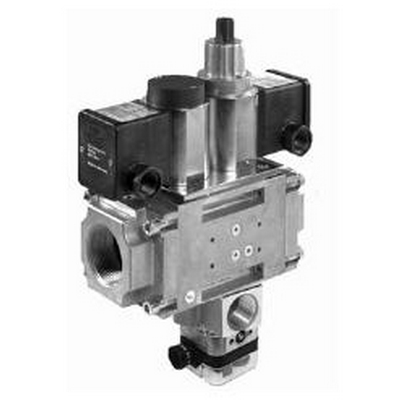

Dual Modular Valves NEMA 4x Enclosure with
Vent Line Adapter & Proof of Closure
DMV-D/622
DMV-DLE/622
Description
The DUNGS Dual Modular Valve (DMV-D(LE)/622) incorporates overtravel and a proof of closure switch which is factory mounted
and set with a Vent Line Adapter (VLA) that is also factory installed.
For main gas lines:
Up to 1 1/2" ; vent line must be 3/4"
2" ; vent line must be 1"
Application
The DUNGS DMV-VLA is recommended for industrial and commercial heating applications that require two safety shutoff valves
with 2 incorporating overtravel and proof of closure switch with a vent line connection between the safety shutoff valves
and NEMA Type 4x enclosure. The (DMV-D(LE)/624 is suitable for natural gas, propane, butane, air and other inert gases.
Specifications
W/ OVERTRAVEL, PROOF OF CLOSURE AND VENT LINE ADAPTER
REQUIRES 1", 1 1/4", 1 1/2", 2" NPT OR RP FLANGES
V1 - FAST OPENING AND FAST CLOSING
V2 - FAST OPENING AND FAST CLOSING
MAX OP PRESSURE: 7 PSI.
TEMPERATURE RATING: -20°F TO +140°F
Includes:
1 Conduit Adapter
1 DIN-Connector
Required Accessories:
Two Flanges
PN: 217-665 Visual Indicator (VI)
Two PN: 219-008 G 1/8" Pressure Test Tap
Required for Periodic Mandatory Testing of Valve Integrity.
