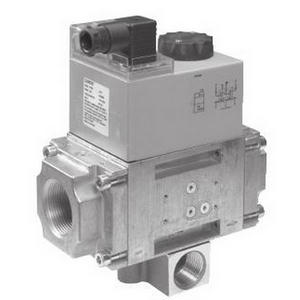

Dual Modular Valves with Vent Line Adapter
DMV-D/6x2
DMV-D/6x4L
DMV-ZR/6x2
Description
The DUNGS Dual Modular Valve with Vent Line Adapter (DMV-VLA) combines all the features of the DUNGS Dual Modular Valve with a
factory installed vent line connection between the two automatic shutoff valves.
For main gas lines:
Up to 1 1/2"; Vent line must be 3/4"
2"; Vent Line must be 1"
Application
The DMV-VLA is recommended for industrial and commercial heating applications that require two safety shutoff valves in series
with a vent line connection between the safety shutoff valves. The DMV-VLA is suitable for natural gas, propane, butane, air and
other inert gases.
Specifications
WITH VENT LINE ADAPTER
REQUIRES 1/2", 3/4", OR 1" NPT OR RP FLANGES
V1 - FAST OPENING AND FAST CLOSING
V2 - FAST OPENING AND FAST CLOSING
MAX OP PRESSURE: 7 PSI.
TEMPERATURE RATING: -40°F TO +150°F
Includes:
1 Conduit Adapter
1 DIN-Connector
Required Accessories:
Two Flanges
One PN: 224 253 Closed Position Indicator (CPI) 400
& One PN: 217-665 Visual Indicator (VI)
OR
Two PN: 217-665 Visual Indicator (VI)
Two PN: 219-008 G 1/8" Pressure Test Tap
Required for Periodic Mandatory Testing of Valve Integrity.
