Single Safety Shutoff Valves

BUY DUNGS VALVES NOW, CLICK HERE

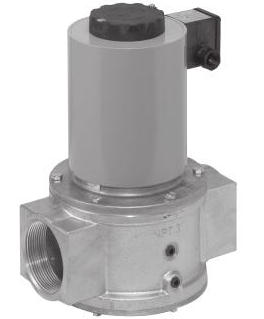

MVD/6
MVDLE/6


Description The DUNGS MVD/6 and MVDLE/6 electrically operated, normally closed, automatic shutoff valves for gas burners and gas appliances.

Application The MVD/6 and MVDLE/6 is recommended for industrial and commercial heating applications that require one or two automatic shutoff valves in series. The MVD and MVDLE valves are suitable for natural gas, propane, butane, air and other inert gases.

Specifications
  • V1 - FAST OPENING AND FAST CLOSING
  • ALUMINUM BODY
  • 1/4" NPT INLET/OUTLET SIDE TAPS
  • SCREW TERMINALS W/ 1/2" NPT CONDUIT
  • MAX OP PRESSURE: 7 PSI.
  • TEMPERATURE RATING: -20°F TO +120°F


    • MVD/6
    MVDLE/6
    Bulletin
    Installation Guide
