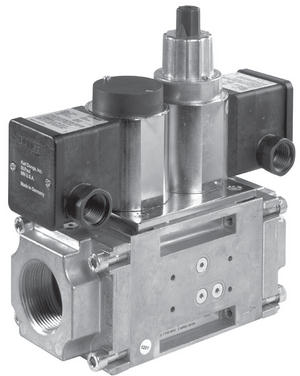

Dual Modular Valves with NEMA 4x Enclosure
DMV-D 604L
DMV-DLE 604L
Description
The DUNGS Dual Modular Valve (DMV-D(LE)/604L) combines two normally closed, automaticshutoff valves in one compact housing
(Rated as a NEMA Type 4x enclosure), which can be wired independently or in parallel. Valve 1 (V1) of the DMV-D and DMV-DLE
series is fast opening and fast closing. Valve 2 (V2) of the DMV-D is fast opening, while V2 of the DMV-DLE is slow-opening
for smoother light-off. Max. flow adjustment on V2 provides variable main flow on both models.
Application
The DUNGS DMV-D(LE)/604 is recommended for industrial and commercial heating applications that require two safety shutoff
valves in series with a NEMA Type 4x enclosure. The (DMV-D(LE)/604L) is suitable for natural gas, propane, butane, air and
other inert gases.
Specifications
REQUIRES 1", 1 1/4", 1 1/2", 2" NPT OR RP FLANGES
V1 - FAST OPENING AND FAST CLOSING
V2 - FAST OPENING AND FAST CLOSING
MAX OP PRESSURE: 7 PSI.
TEMPERATURE RATING: -20°F TO +140°F
Includes:
1 Conduit Adapter
1 DIN-Connector
Required Accessories:
Two Flanges
One PN: 224 253 Closed Position Indicator (CPI) 400
& One PN: 217-665 Visual Indicator (VI)
OR
Two PN: 217-665 Visual Indicator (VI)
Two PN: 219-008 G 1/8" Pressure Test Tap
Required for Periodic Mandatory Testing of Valve Integrity.
DMV-D 704/604
DMV-DLE 704/604
Description
The DUNGS Dual Modular Valve (DMV-D(LE)/604L) combines two normally closed, automaticshutoff valves in one compact housing
(Rated as a NEMA Type 4x enclosure), which can be wired independently or in parallel. Valve 1 (V1) of the DMV-D and DMV-DLE
series is fast opening and fast closing. Valve 2 (V2) of the DMV-D is fast opening, while V2 of the DMV-DLE is slow-opening
for smoother light-off. Max. flow adjustment on V2 provides variable main flow on both models.
Application
The DUNGS DMV-D(LE)/604 is recommended for industrial and commercial heating applications that require two safety shutoff
valves in series with a NEMA Type 4x enclosure. The (DMV-D(LE)/604L) is suitable for natural gas, propane, butane, air and
other inert gases.
Specifications
REQUIRES 2" NPT OR RP FLANGES
V1 - FAST OPENING AND FAST CLOSING
V2 - FAST OPENING AND FAST CLOSING
MAX OP PRESSURE: 7 PSI.
TEMPERATURE RATING: -20°F TO +140°F
Includes:
1 Conduit Adapter
1 DIN-Connector
Required Accessories:
Two Flanges
One PN: 224 253 Closed Position Indicator (CPI) 400
& One PN: 217-665 Visual Indicator (VI)
OR
Two PN: 217-665 Visual Indicator (VI)
Two PN: 219-008 G 1/8" Pressure Test Tap
Required for Periodic Mandatory Testing of Valve Integrity.
