EGA Combustion Analyzers
& Sniffers
(Discontinued)
\EGA.jpg)

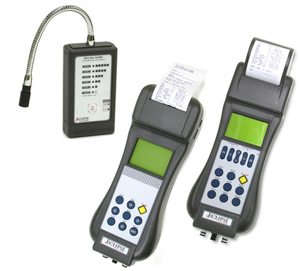

Both Eclipse EGA2 and EGA4 Analyzers are microprocessor based, multigas, compact palm-top multifunction instruments designed to easily fit into your toolbox.
The EGA2 Analyzer includes:
Flue gas anaylzer
Ambient parameters indicator
Two internal electrochemical sensors read the Oxygen (O2) and carbonic monoxide (CO) gas concentration.
The gas temperature and air temperature are used in connection with the gas analysis to calculate the efficiency, excess air, and CO2 concentration.
The EGA4 Analyzer includes:
A flue gas analyzer
Emissions monitor
Ambient parameters indicator
Two internal electrochemical sensors read the Oxygen (O2) andcarbonic monoxide (CO) gas concentration
The gas temperature and air temperature are used in connection with the gas analysis to calculate the efficiency, excess air, and CO2 concentration. A third cell (NO or SO2) enables the pollution measurement. The NO concentration can be expressed in terms of NOx as required by ambient laws. EGA4 can install a fourth electrochemical sensor to monitor pollution. In this way you can measure simultaneously and using a single unit, NO/NOx and SO2 gas concentration.
The EGA1 Mini Gas Sniffer is a hand-held, hydrocarbon gas leak detector that is highly sensitive, rugged and accurate. Its LED scale and beeper effectively pinpoint small leaks in piping or appliances, and inaccessible areas are reached with the 8" (200mm) long flexible probe.
|
If you don't see the technical document that you need listed, contact
techdocs@peconet.com
and we will try to locate it in our archives.
 |
