Minimixers

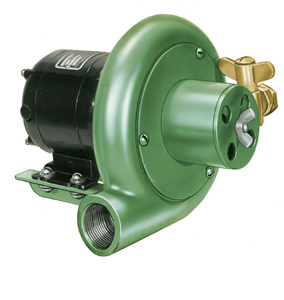

The Eclipse Minimixer is a minature fan-type mixer. It produces an air/gas mixture and delivers it under pressure to a burner or series of burners.

Minimixers are normally used for small industrial heating applications or for piloting installations where a blast pilot is desired and there is no other source of pressure air available.

Each Minimixer incorporates a small blower constructed of cast aluminum and employing a totally enclosed universal series wound motor. Minimixers can be mounted in any desired position. The blower/mixer assembly can be rotated on the base to provide any desired mixture outlet position. The gas inlet can be rotated in 90 degree increments, providing a choice of four different inlet positions.

Bulletin

Bulletin 662 (Aug. 87)
Bulletin 660 (Sep. 74)

If you don't see the technical document that you need listed, contact techdocs@peconet.com
and we will try to locate it in our archives.
