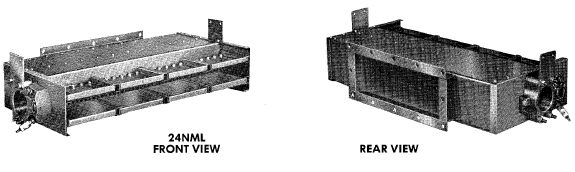

Ratio-Flame Burners

Eclipse Ratio-Flame burners are nozzle-mixing line type air heat burners designed for the use in dryers, ovens, and similar applications. Although intended for in-duct mounting, they can be sealed or gap-fired if required. Combustion air is piped to the burner independently of the process airstream, permitting accurate contril of burner air/gas ratio. Ratio-flame burners can thus be operated stoichiometrically to provide significant fuel savings when excess air is not required. They are also well suited to recirculating air systems in which oxygen content or total air flow must be closely regulated. Ratio-flame burners can be used with any clean commercially available fuel gas.

Bulletin

Click Here (Aug. 87)

Information Guide

Click Here (Aug. 87)

For Archive Documents Click Here

If you don't see the technical document that you need listed, contact techdocs@peconet.com
and we will try to locate it in our archives.
