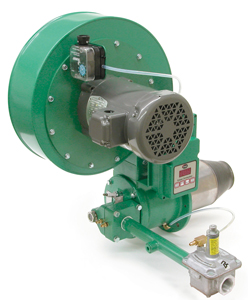

RatioAir

Available with three different outlet tube velocity characteristics (standard, medium and high velocity), RatioAir burners are capable of flame speeds of up to 500 feet per second. This results in improved temperature uniformity, product quality and system efficiency. A ratio regulator automatically compensates for changes in operating conditions and assures ratio controlled operation over a turndown range in excess of 50:1. A direct drive air butterfly eliminates linkages which can slip or jam during operation.

Designed for application versatility and simplicity of operation.

The Eclipse RatioAir is a premium air heating burner ideally suited for applications that require:

A velocity burner with integral packaged blower.
High excess air and ratio control.
Use of unusual fuels (e.g. low Btu fuels).
High chamber temperatures (up to 2500o F - 1370o C).

Confined firing chambers.
