RatioStar

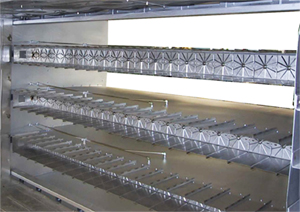

RatioStar is a modular duct burner designed for direct fired air heating applications. Burners are configured in rows of up to 24 modules. Propagation modules connect individual burner rows to provide cross ignition. This modular design allows for a wide range of burner matrix configurations. Burner modules are built with high quality stainless steel. Engineers can design a complete RatioStar duct system with gas train to meet specific customer requirements.

Typical applications include:
Air heating processes that require optimum heat distribution in process air flows.
Air heating processes that requires optimum combustion efficiency (On ratio control).
Low Oxygen process air flows that require additional heat.
Air flows with high inlet temperatures up to 750 ºC, where standard air heating burners cannot be used.
Processes that require low emissions for CO, NOx and unburned Hydro Carbons
