Standard Valve Train

Segments

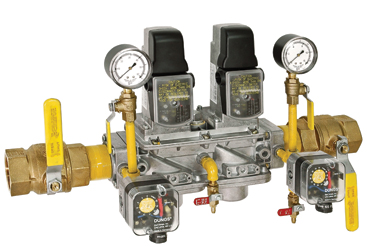

The Eclipse Standard Valve Train Segments are designed to install faster, operate safer and deliver proven reliability for global applications. Eclipse Standard Valve Train Segments are offered in the NFPA series with UL, CSA and FM approved components or in the EN 746-2 series utilizing CE marked components.

All Standard Valve Train Segments are available in nominal pipe sizes from 1/2” (25 mm) through 8” (200 mm). Threaded and flanged models are available depending on the pipe size specified.

For complete configured gas train assemblies that include options for strainers, regulators, and gauges, refer to the Configured Packaged Valve Trains page.

Color Catalog

Click Here (Oct. 07)

Installation Guide

791-2 PulsePak Valve Train Segments
(Aug. 10)
791 Standardized Valve Train Segments
(Oct. 07)

Design Guide

Click Here (Oct. 07)

Data Sheets

791-1 NFPA (Apr. 08)
791-2 CE (Oct. 07)
791-3 NFPA (Aug. 10)
791-4 CE (Aug. 10)

If you don't see the technical document that you need listed, contact techdocs@peconet.com
and we will try to locate it in our archives.
