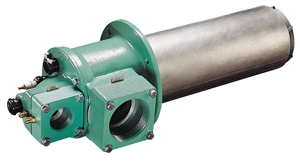

ThermThief Tube Firing Burners



The Eclipse Tube Firing Burner is designed to fire radiant and immersion tubes with inputs from 25,000 to 2,000,000 Btu/hr. The Tube Firing Burner comes equipped with the Eclipse ThermThief system. A unique nozzle creates an intense adjustable-length flame with a vigorous spinning action. The long, spiraling flame results in cleaner combustion, efficient heat transfer and more uniform tube temperatures. The flame scrubs the inside of the fire tubes to remove the gas film boundary layer and increase heat-transfer effectiveness with outstanding temperature uniformity. Not only do these factors contribute to longer tube life, they also ensure consistent uniform product processing.

Additional Benefits Include:
  • Low NOx and low CO.
  • Low excess air capability for high efficiency.
  • Low air and gas pressure requirements.
  • High heat transfer at low noise levels.
  • Reliable ignition at a wide range of firing rates.
  • Can be fitted with Eclipse Bayonet-Ultra recuperators for maximum system efficiency.

  • TFB Color Catalog
    Click Here (Jun. 06)
    TFB Installation Guide
    Click Here (Jan. 07)
    TFB Design Guide
    Click Here (Aug. 05)
    TFB Data Sheets
    TFB030 (Aug. 05)
    TFB075 (Aug. 05)
    TFB200 (Jul. 06)

    If you don't see the technical document that you need listed, contact techdocs@peconet.com and we will try to locate it in our archives.
