Gas Pressure Regulators

Eclipse offers a line of gas regulators for industrial applications of natural, mixed, manufactured and liquefied petroleum gases or LP gas-air mixture. The regulators are categorized according to design:

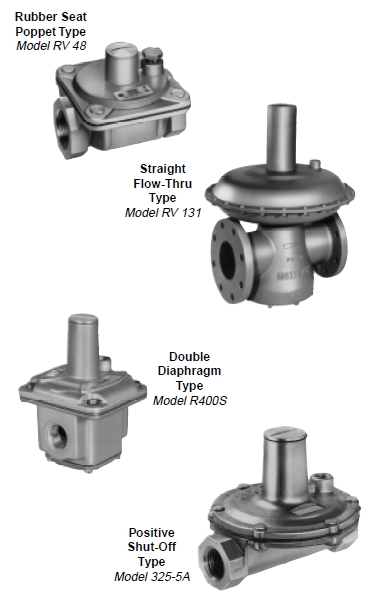

Rubber Seat Poppet Type

These regulators are designed primarily for main burner and pilot load applications where precise control of tiny flows is an essential operation requirement. Housings are cast aluminum.

Straight Thru-Flow Type
The patented design of these low pressure regulators provides accurate, sensitive regulation. This design also allows high flow rates with minimum pressure drops.
These regulators should not be used:
1) where the inlet pressure will be ten times greater than the outlet pressure
2) as tight shut-off valves.
Outlet pressures may be varied by changing the diaphragm spring. Housings are aluminum for sizes through 3”, and iron for the 4” size.

Double Diaphragm Type
The RS Series is designed primarily for main burner and pilot load applications. They are ideally suited for industrial heaters and boilers. The double diaphragm balanced valve design prevents the inlet pressure from acting on the valve. Housings are aluminum.

Positive Shut-Off Type
The 325-5A is a lever acting regulator with an aluminum housing. It features a high leverage valve linkage to deliver positive dead end lock-up and precise regulation control from full flow down to tiny pilot flows. The 325-5A can be ordered with various springs to accomodate outlet pressures from 4”w.c. up tp 2 psi.

Bulletin

Click Here

If you don't see the technical document that you need listed, contact techdocs@peconet.com
and we will try to locate it in our archives.
