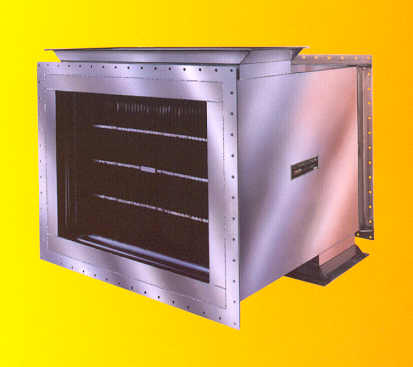

The Stainless Steel Heat Exchanger
- Fully welded end seals and primary seals virtually eliminate cross
contamination
- W-I-D-E plate spacing
- 3"x3"x1/4" (75mm x 75mm x 6mm) structural or stainless steel angles
- Removable access cover on exhaust and supply sides for quick
inspection or cleaning
- Heavy gauge stainless steel casting
- CFM volume ranges from 100 to 10,000 (170 to 17,000 m3/hr)
- Temperatures to 1,200°F (650°C)
|

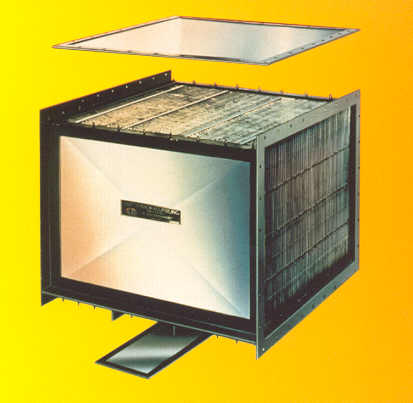

The Heat Recuperator
- W-I-D-E plate spacing
- 4" (100mm) of high temperature insulation
- 3"x3"x1/4" (75mm x 75mm x 6mm) stainless flanges
- Fully welded end seals and primary seals virtually eliminate cross
contamination
- High temperature alloy construction
- Air volumes ranging from 100 to 10,000 CFM (170 to 17,000 m3/hr)
- Temperatures to 1,500°F (815°F)
|
