- Interchangeability among Series B meter bodies of the same size.
- Permanently lubricated for long life and virtually maintenance- free
operation.
- Modular design allows a quick-change to a different version at a lower
overall cost.
- Durable, weather resistant cover with improved sealing capability
- Versatile and configurable odometer masking.
- Universal Instrument Drive (ID) assembly -one size fits all 8C-56M
Series B Meters.
- Quick and easy field installation of the low cost Solid State Pulser.
- Available with factory pre-installed magnets for quick installation of
the Solid State Pulser or Model 5 Prover Field Counter Pulser Module.

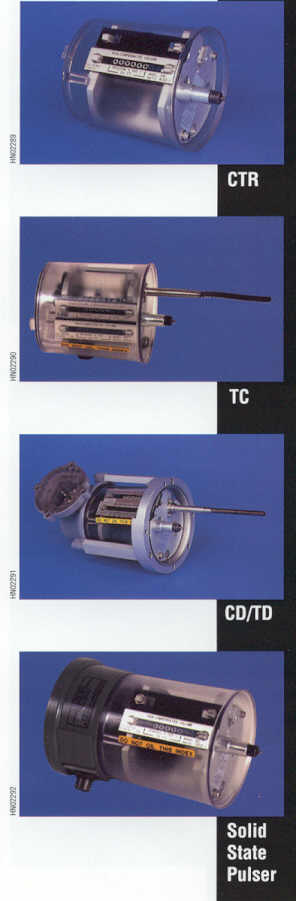

Counter (CTR)
An 8 digit non-compensated index registers displaced volume in Actual
Cubic Feet (ACF) or in Actual Cubic Meters (m3).
Temperature Compensated (TC)
Temperature compensation, available in meter sizes 8C-16M, is
accomplished by a mechanical computer with a spiral bi-metallic thermocouple
(probe) located in a sealed temperature well at the meter inlet. Series 3 TC
Units provide corrected gas volume readings to a 60°F (15°C) base
temperature for readout in Standard Cubic Feet (SCF) or Normal meters Cubed
(Nm3) between flowing temperatures of -20°F and + 120°F ( -29°C and + 49°C).
Counter or Temperature Compensated with Instrument Drive (CD/TD)
The Universal Instrument Drive (ID) Assembly adapts to the CTR and TC
Accessory for installation of a corrector, chart recorder, or other
externally mounted, mechanically driven device. The ID Assembly is
mechanically linked to the CTR/TC mechanical gear reduction unit. One
revolution of the instrument drive dog represents a specific displaced
volume measured by the meter.
Solid State Pulser
The ROOTS solid state pulser mounts directly to a CTR/TC Unit, generating
low frequency pulses representing volumetric information for remote reading.
Mechanical switches have been eliminated for maximum reliability. No battery
or maintenance is required. |
