• 5M master meter
  Capacity: 35 to 5,650 ACFH
  (1 to 160 m3/h)

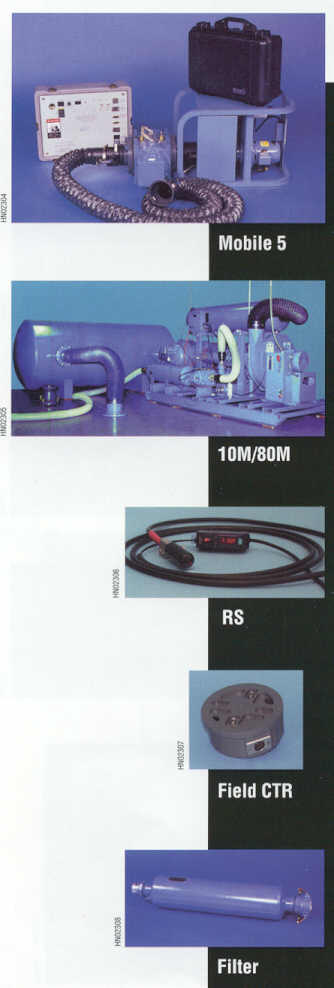

• Especially suited for testing meters previously inaccessible to conventional proving systems

• Modular system easily transportable from a vehicle by one person in two trips

10M/80M Proving System

• 10M and 80M master meters
  Capacities:
  80M: 1 ,600 to 80,000 ACFH
            (45 to 2,265 m3/h)
  10M: 100to10,000ACFH
            (11 to 283 m3/h)

• Skid Mounted Shop System

• Designed for low volume through high capacity meter proving

• Ideal for testing large capacity rotary and turbine-type gas meters

RS Optical Scanner

The optional RS Optical Scanner is used to facilitate meter testing using an automatic testing sequence. This eliminates the potential for human error associated with a manual test. The Scanner can be used on dial indexes and odometers with black and white graduated marks.

Field CTR Pulser Module

When prover testing a Series B3 CTR Version "pulser ready" meter, this module can be quickly snapped onto the Lexan^® cover and connected to the prover Field Junction Box. The set-up time for the Module is much quicker than the RS Optical Scanner and the human inaccuracies of a manual test are eliminated.

Acoustic Filter

When testing turbine-type gas meters with a transfer prover, an Acoustic Filter should be installed between the Field Meter (meter under test) and the ROOTS master meter. The Acoustic Filter reduces or eliminates the resonance phenomena induced by pulsation from the master meter at most flow rates. An Acoustic Filter is ideal for shop use with a Model 5 ROOTS prover.
