Packaged Modular Vaporizer/Mixing Systems

QM Vaporizer / Mixer Package
QM28 TO QM125 (28-125 MILLION BTU/HR)

Industrial duty fixed air forced draft power burner provides optimum exhaust stack temperatures and fast response to load changes. Suitable for elevations up to 10,000 ft. and varying fuel compositions of propane, butane, or natural gas.

• Combination of a gas fired waterbath vaporizer and an atmospheric venturi mixer.
• Water circulation pump eliminates thermal stratification and increases heat transfer.

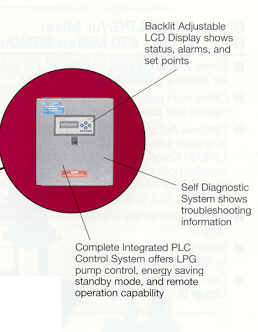

• Monitored alarm display points:
  - Flame failure
  - High liquid LPG level
  - Low water level
  - High water temperature
  - High burner gas pressure
  - Power On/Reset
  - High mixed gas pressure
  - Low inlet LPG pressure
• Options include:
  - Automatic pump control
  - Remote control interface to operate via modem or plant PC
• Operation suitable down to -40°F (-40°C)
• Compact design reduces space requirements
• Simple one step operation for entire system
